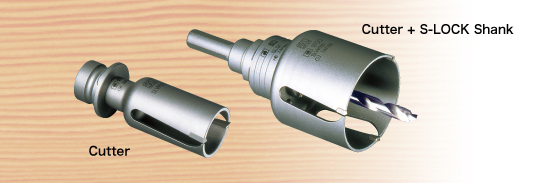

Wooding Holesaw
Our original design of the cutting teeth permits safe cutting through nails.
Smooth removal of dust.
CHARACTERISTICS
- Unique geometry of the cutting teeth suitable for wood drilling.
- Since the geometry of the cutting teeth is ideal for removal of dust, this holesaw is most suitable for deep drilling.
- Easy to operate with the automatic locking and manual release mechanism.
(S-Lock system)
APPLICATIONS
- Lumber wood, composite material of up to 1-1/2" (38mm) thickness.
SPECIFICATIONS
 |
Cutter size: | o7/8" to 2-9/16" (o22mm to 65mm) |
|
Max drilling depth: | 1-1/2"(38mm) |
|
Shank size: | Straight shank 3/8" (10mm), SDS shank, 1/4" Hex Shank (For cutter size of 1-3/8"(35mm) or less) |
|
Applicable electric drill: | Portable electric drills (in the rotary-only mode) |
Size table
| The actual sizes are in metric, imperial sizes are approximate. |
| Cutter size D | Cutters | |
| inch | mm | Part No. |
| 7/8" | 22mm | SLW022 |
| 1" | 25mm | SLW025 |
| 1-1/8" | 29mm | SLW029 |
| 1-1/4" | 32mm | SLW032 |
| 1-3/8" | 35mm | SLW035 |
| 1-1/2" | 38mm | SLW038 |
| 1-3/4" | 45mm | SLW045 |
| 2" | 50mm | SLW050 |
| 2-9/16" | 65mm | SLW065 |
* Click here for information about the shanks and center drills.
* Click here for Holesaw Kits.

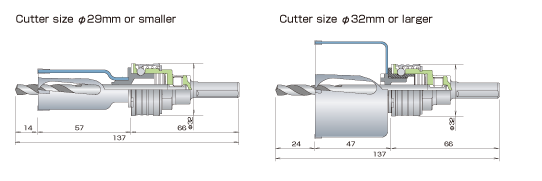

Shanks (with high speed steel center drill)
| Item | Part No. | Specifications |
| Straight shank | SLSKU | Straight shank 3/8" (10mm) |
| SDS shank | SLSKRU | SDS shank (Light-weight hammer drill) |
| Shank for cordless driver drill | SLSKDU | 1/4” Hex Shank (For cutter size of 1-3/8" (35mm) or less) |
| * | The shank for cordless drill can be used with cutters of up to 1-3/8" (35mm) in diameter. |
| * | The plug ejector is included. |
Center drills
| Item | Part No. | Specifications |
| HSS center drill | SLCD | |
| HSS center drill 80 | SLCD80 | Holesaw 578 |
| Carbide center drill | SLCDT |
Plug ejector
| Item | Part No. | Application |
| Plug ejector | SLPE | Removal of dust |
Cutter adaptors
| Item | Part No. | Cutter sizes |
| Cutter adaptor 30 | SLADP30 | 1-3/16" (30mm) or less |
| Cutter adaptor 38 | SLADP38 | 1-7/32" to 2-9/16" (31mm to 65mm) |
| Cutter adaptor 130 | SLADP130 | 2-19/32" to 5-1/8" (66mm to 130mm) |
